Jack SMT RJ45 Modular Tanpa Magnet Transformer Terpadu Orientasi Atas 180 °
Kontak Person : David
Nomor telepon : 15972107349
| Kuantitas min Order : | 500 Potongan | Harga : | Supportive |
|---|---|---|---|
| Kemasan rincian : | Baki dalam Karton | Waktu pengiriman : | hari kerja 3 |
| Syarat-syarat pembayaran : | T / T, Western Union,, Paypal | Menyediakan kemampuan : | 100kpcs / hari |
| Tempat asal: | Guangdong China | Nama merek: | TM |
|---|---|---|---|
| Sertifikasi: | UL,Rohs,Reach,ISO9001 | Nomor model: | TM811BD2AAB016007 |
|
Informasi Detail |
|||
| Jumlah Port: | 1 X 1 | OPSI LED: | N/A |
|---|---|---|---|
| Panjang: | 23mm | Perumahan bahan: | PBT UL94V-0 |
| Hubungi kawin Area Plating: | PLATING EMAS 6U | Tipe Konektor: | Hitam |
| Nomor kontak: | 8 | PILIHAN GROUNDING: | Panel Ground dan Ground PCB |
| BAHAN PLAT SHIELD: | Nikel | TABS SHIELD EMI: | Tidak |
| PERISAI: | Ya | PANEL STOP: | Ya |
| PCB Gunung sudut: | Masuk Samping | Paket: | SMD |
| CONNECTOR & CONTACT TERMINAATES TO: | Printed Circuit Board | ||
| Menyoroti: | rj45 8p8c jack,jack rj45 terlindung |
||
Deskripsi Produk

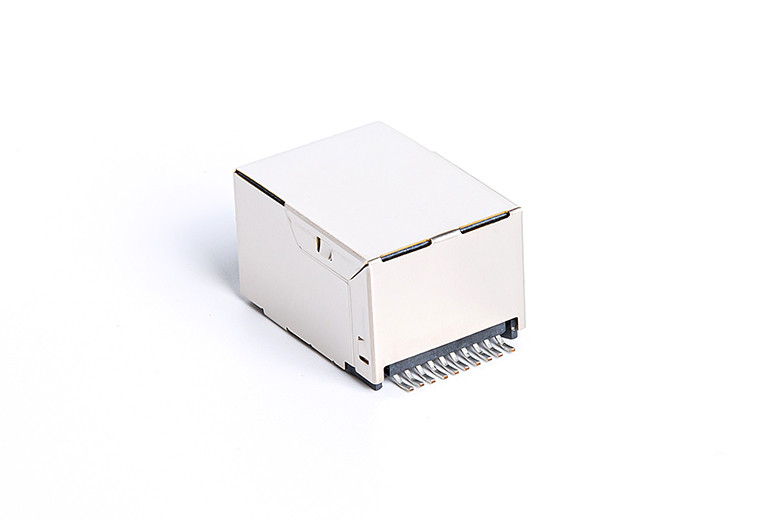

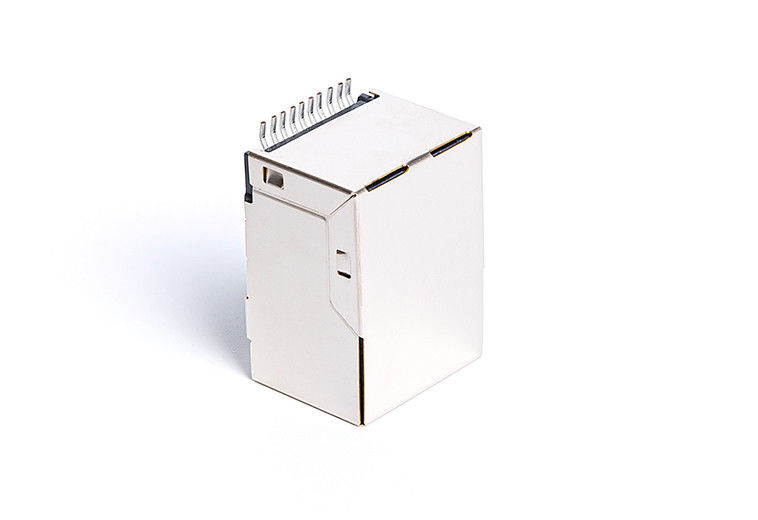

LATCH Up SMT 10/100 Perisai Magnetik RJ45 Jack Tunggal Port Tab Up Dengan LED DIP Mounting TM811BD2AAB016007
RJ45 Tanpa Transformer (TM811BD2AAB016007) Atribut:
| Nomor model | TM811BD2AAB016007 |
| PANJANGNYA | 23mm |
| BAHAN PERUMAHAN | PBT UL94V-0 |
| CONTACT MATING AREA PLATING | PLATING EMAS 6U |
| JENIS KONEKTOR | RJ45 |
| WARNA BAHAN KONEKTOR | HITAM |
| OPSI LED | T / A |
| JUMLAH PELABUHAN | 1X1 |
| JUMLAH KONTAK | 8 |
| PILIHAN GROUNDING | Panel Ground dan Ground PCB |
| BAHAN PLAT SHIELD | NIKEL |
| TABS SHIELD EMI | Tidak |
| MELINDUNGI | IYA NIH |
| ROHS COMPLIANT | IYA NIH |
| PANEL STOP | IYA NIH |
| PCB MOUNT ANGLE | MASUK SISI |
| PAKET | SMD |
| CONNECTOR & CONTACT TERMINAATES TO | Papan Sirkuit cetak |
| ORIENTASI LATCH | LATCH Up |
Konektor RJ45 Female (TM811BD2AAB016007) Aplikasi :
10/100 juta kartu bersih, kartu bersih PCMCIA, Hub USB, sakelar jaringan, router, transceiver serat optik, transceiver optik, telepon IP, set-top box internet, kamera internet, jembatan net, komputer, telekomunikasi, MODEM,
HomePNA, DSL ／ ADSL dan sebagainya.
Konektor RJ45 Female ( TM811BD2AAB016007 ) Menggambar Mechnical :
